ZT165EV Mining Dump Truck

ZT165EV Mining Dump Truck

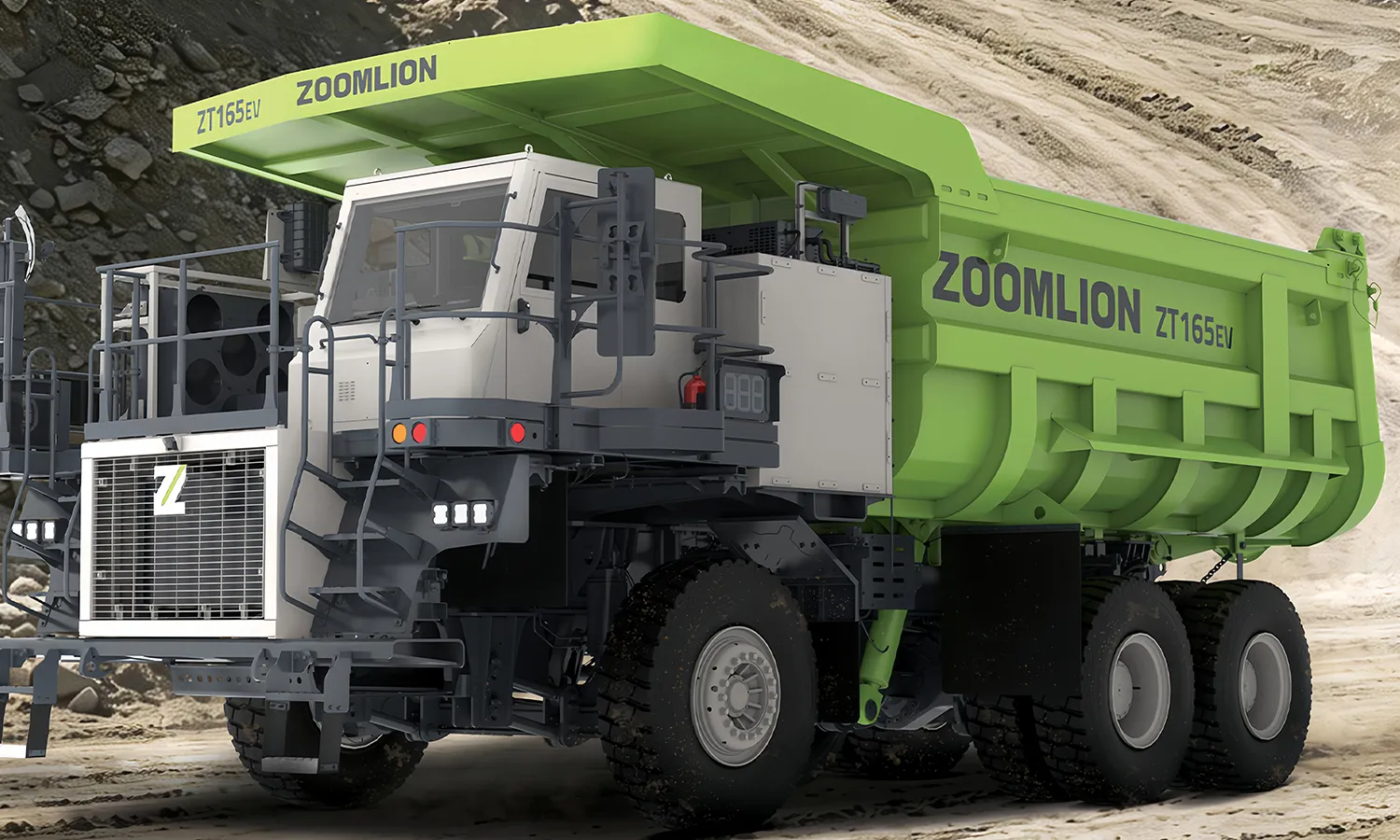

ZOOMLION ZT165EV all-electric mining dump trucks are a type of heavy machinery that have a rated payload of 100 tons for material transport in metal mines, coal mines, and sand and gravel operations. These wide-body haul trucks are suitable for routes where they frequently travel downhill with heavy loads, as their electric drive can reduce energy consumption and help lower operating costs.

  • Rated Power: 800 kW
  • Standard Dump Body Capacity: 61 m³
  • Rated Payload: 100,000 kg
  • Curb Weight: 61,000 kg
Request A Quote
Advantages
  • Lower Maintenance Costs
    Since these electric mining trucks have no diesel engine, conventional transmission, or exhaust aftertreatment system, they require fewer costly maintenance tasks. Maintenance costs over their service life are estimated to be around 30% lower than those of comparable diesel-powered trucks.
  • Continuous Power During Gear Changes
    The Green Control CED34000H dual-motor drive system uses a coaxial parallel arrangement to maintain power during gear changes, including on steep climbs. Its rated output of 800 kW and peak output of 1100 kW provide the power needed to haul heavy loads.
  • Structural Durability and Cab Protection
    Critical components, including the frame and axles, have a safety factor greater than 3.5 and a design life of more than six years. The cab also meets FOPS/ROPS requirements for protection against falling objects and rollovers.
  • Battery Protection and Service Life
    The lithium iron phosphate (LFP) battery has an IP6K9K protection rating against dust and high-pressure, high-temperature water jets, along with corrosion protection. It is specified for more than 4000 charge-discharge cycles with less than 30% loss of battery capacity.
Technical Specifications
Standard configuration Charging method 1C fast charging
Battery CATL / Qiyuan 801 kWh
Drive system CED34000H
Electronic control system 2-in-1 + 5-in-1 controller
Axle load ZOOMLION 41t+60t+60t
Tires 505/95R29-TT TUE311-C1
Retarder Hydrodynamic retarder
Steering system Full hydraulic steering + emergency steering
Front/rear suspension Front hydropneumatic / rear hydropneumatic suspension
Cab Wide-body dual-seat cab (R/F)
Body type Short visor / U-shaped / with tailgate (55 m³ / 67 m³)
Hoist system Dual-cylinder center-mount hoist system (4TG-EF200 × 3350ZL)
Four-camera monitoring system Standard
Onboard weighing system Standard
Centralized lubrication system Standard
Drive-by-wire chassis Standard
Optional configuration Extended capacity body Short visor / U-shaped / with tailgate (61/73m³)
Tire pressure monitoring Optional
Driver fatigue monitoring Optional
360° surround view Optional
Autonomous driving Optional

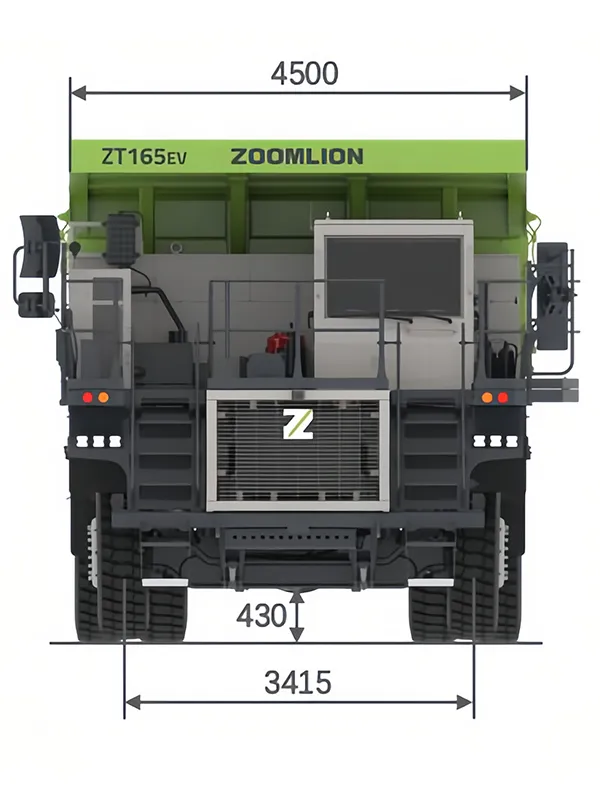

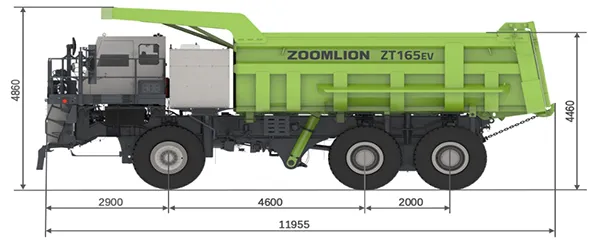

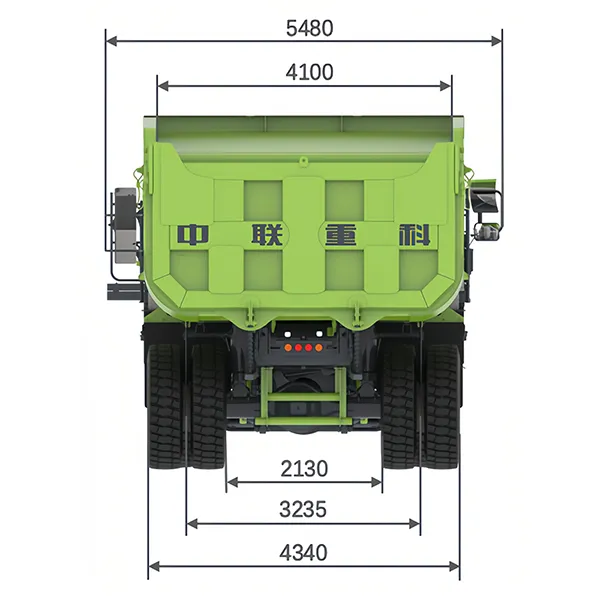

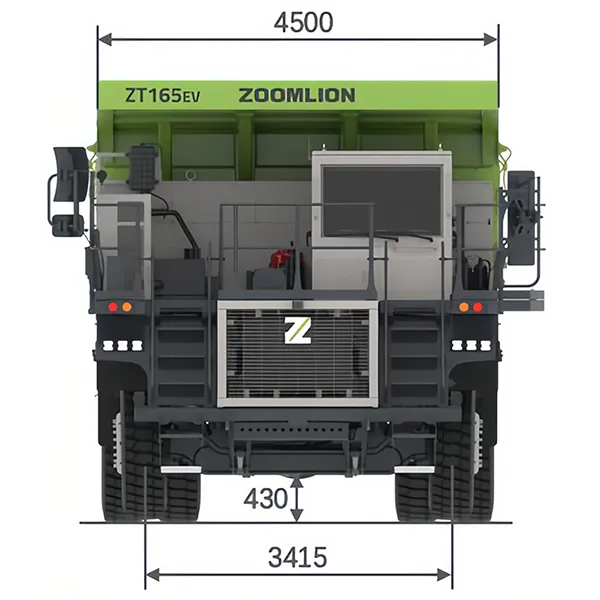

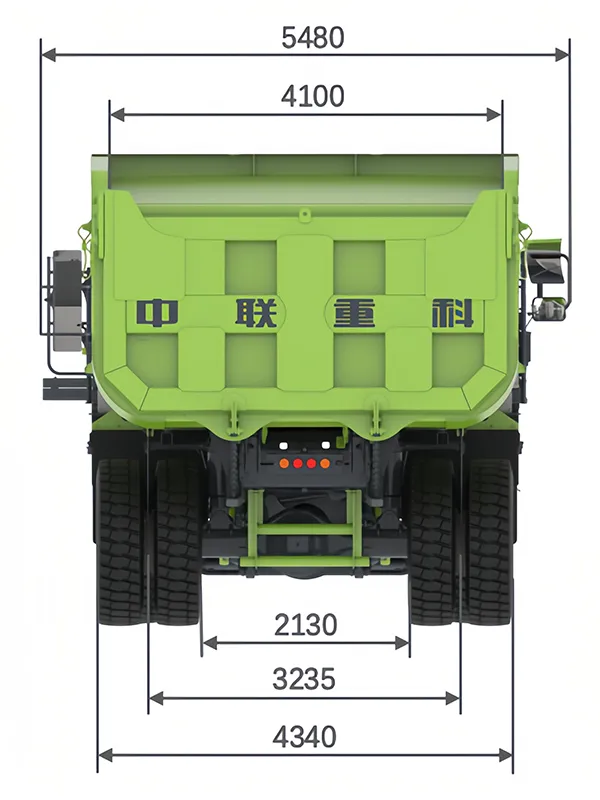

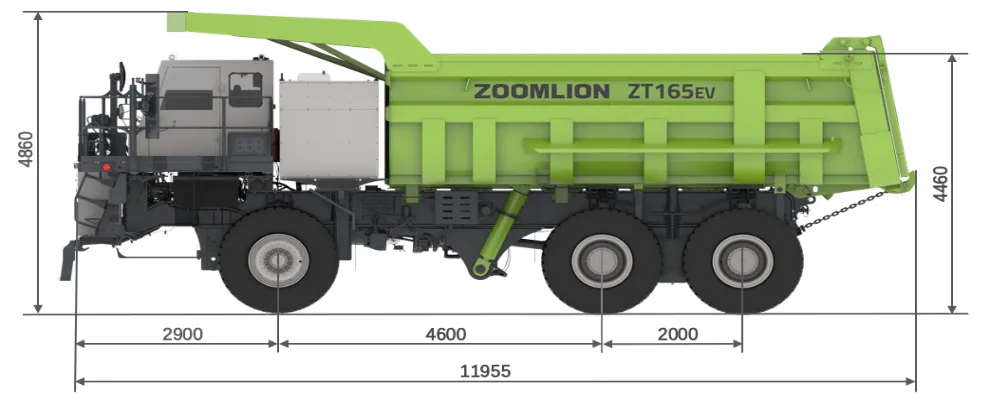

Overall Dimensions (mm)
Overall length 11955
Overall width 5480
Overall height 4860
Front overhang 2900
Front-to-middle axle spacing 4600
Middle-to-rear axle spacing 2000
Min. ground clearance 430
Front track 3415
Rear track 3235
Rear wheel inner width 2130
Rear wheel outer width 4340
Body width 4500
Body inner width 4100
