ZT118EV Mining Dump Trucks

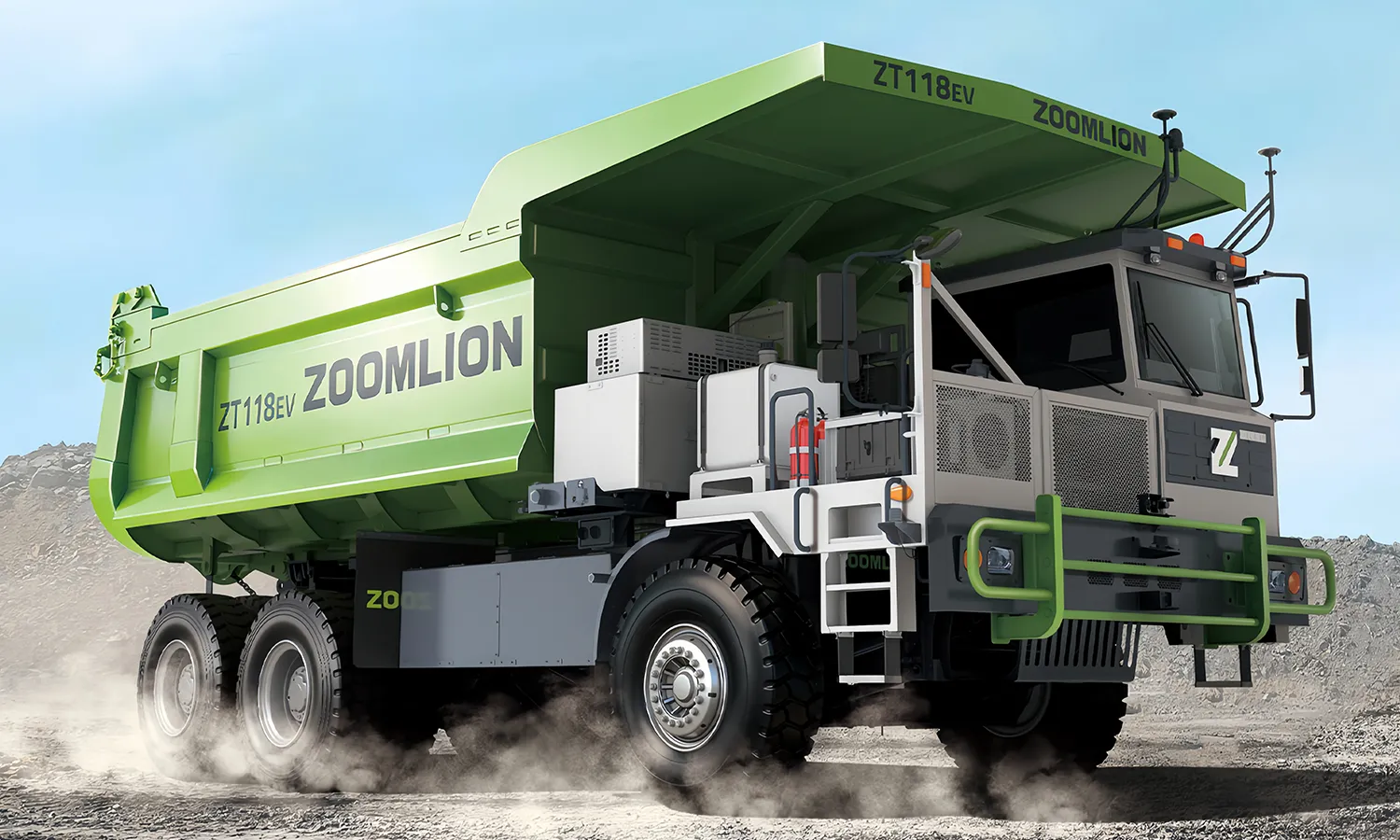

ZT118EV Mining Dump Truck

ZOOMLION ZT118EV electric mining dump trucks carry up to 80 tons of bulk material per trip for small and medium-sized mining operations. They have a payload capacity of approximately 14.3% higher than that of a 70-ton haul truck, so each trip can move an additional 10 tons when fully loaded. These mining trucks can be supplied with several battery capacity options, so mine operators can choose one based on how far the trucks travel, how steep the haul roads are, and how much material they need to move each day.

  • Rated Power: 540 kW
  • Standard Dump Body Capacity: 45 m³
  • Rated Payload: 80,000 kg
  • Curb Weight: 45,000 kg
Request A Quote
Advantages
  • Powerful Electric Drive
    Two permanent magnet synchronous motors deliver 540 kW of continuous power and 800 kW at peak output. The power flows smoothly during gear changes with a six-speed mining AMT transmission.
  • Flexible Battery Options
    The CATL mining battery system comes with a standard 800 kWh capacity, IP68 protection and a service life of 4,500 charge-discharge cycles. Different battery capacities are available to suit specific mining conditions.
  • Reliable Braking on Steep Roads
    Regenerative braking, an eddy-current retarder and pneumatic drum brakes provide reliable control on long descents, even when the battery is fully charged. Emergency steering and high-voltage insulation monitoring add extra safety.
  • Heavy-Duty Construction
    A high-strength welded frame, adjustable hydropneumatic suspension and reinforced axles gives it a durable structure to handle repeated heavy loads. The haul truck also offers wear-resistant U-shaped dump bodies in 41 m³ and 50 m³ capacities.
  • Smart Mining Capabilities
    ZT118EV electric mining dump trucks have a drive-by-wire chassis that supports future autonomous operation. And 5G connectivity enables the heavy equipment for remote diagnostics, energy monitoring, automatic weighing and haulage dispatch.
Technical Specifications
Curb weight Rated payload Body volume Max. travel speed Gradeability Min. turning radius
45000/44000/41000 (kg) 80000 (kg) 45/54(SAE 2:1) （m³） 43 (km/h) 35% 12m
Powertrain  Model CED21000H Tires Size 16.00R25
Rated / peak power (kW) 540/800 (dual motors) Rim Size 11.25/2.0-25
Rated / peak torque (N·m) 2400/4800(dual motors)
Max. system torque (N·m) 21000 Suspension System Front suspension  Hydropneumatic suspension
Battery type / manufacturer LFP / CATL Middle/rear axle suspension Hydropneumatic suspension
Motor type Permanent magnet synchronous motor (PMSM) Hydraulic System Type Single-cylinder multi-stage front hoist
Battery capacity (kWh) 800 Steering System Steering type Full hydraulic steering
Transmission system Transmission CED21000H Brake System Front axle brake Drum brake
Transmission gears 6-speed powershift transmission Middle/rear axle brake Drum brake
Axle gear ratio 18.72 Auxiliary braking Electric regenerative braking + eddy-current brake
Gear ratios 7.23/4.67/3.05/2.06/1.117/1 Air reservoir capacity (L) 230
Axle load (t) 35+45+45 Frame Structure Parallel side-member and cross-member welded frame; Main frame uses welded box-section steel plate
Dump Body & Cab Body capacity (m³) 41/50 (SAE2:1) Cab Body canopy FOPS/ROPS certified
Internal body dimensions (mm) 6520 × 3850 × 1714 Battery Voltage (V) 24
Battery quantity 2 (12V, 180AH per each)
Plate thickness (front/side/bottom/rear) (mm) 8/12/16/12
Main plate material NM450 Lighting Main lighting LED headlamps
Loading height (mm) 3780 Auxiliary lighting Night side-work, rear reversing & front fill lights
Other Standard emergency steering, drive-by-wire chassis

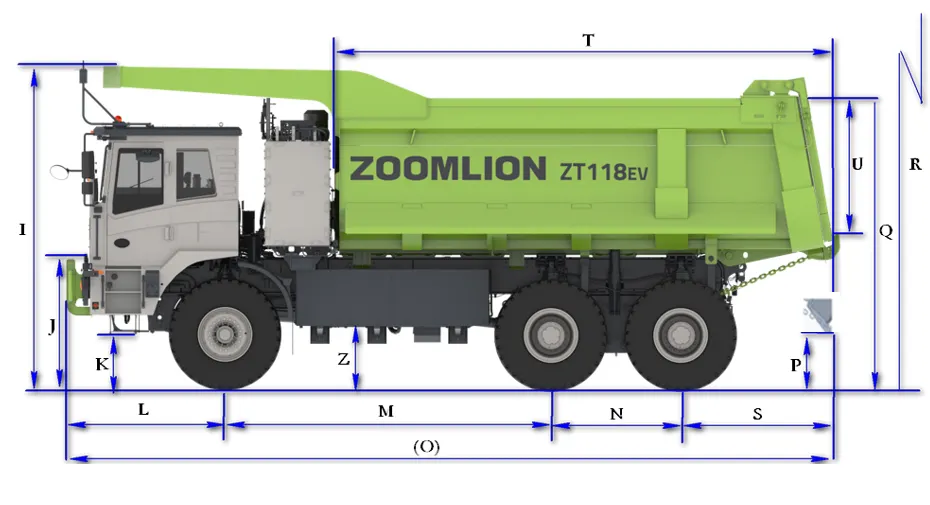

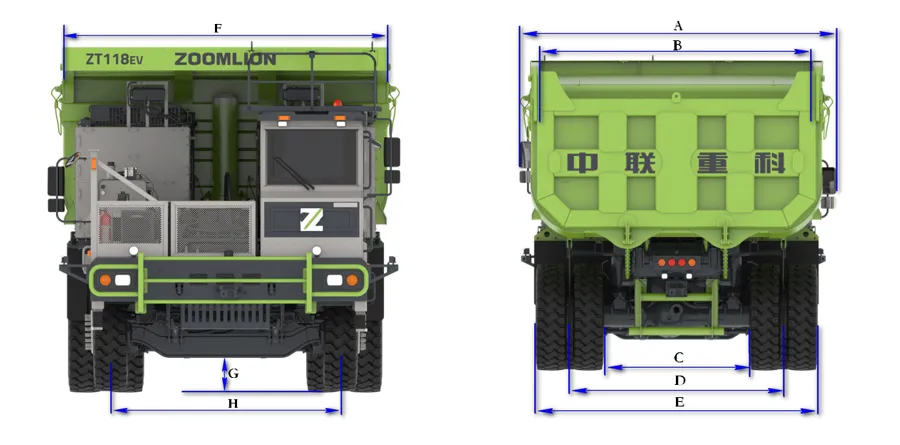

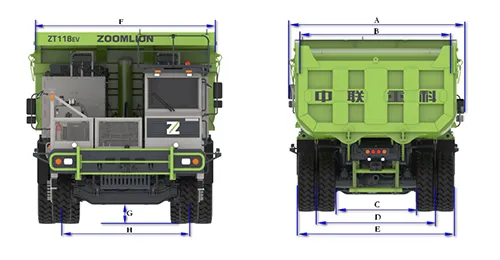

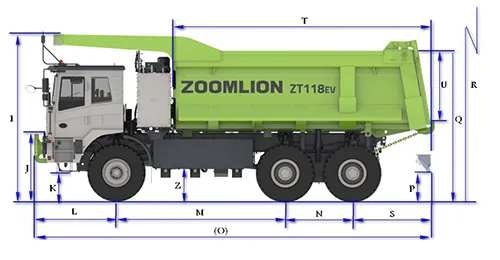

Overall Dimensions (mm)
Overall width A 4460 Front overhang L 2142
Body inner width B 3850 Front-to-middle axle spacing M 4400
Rear wheel inner width C 2056 Middle-to-rear axle spacing N 1750
Rear track D 3020 Overall length O 10435
Rear wheel outer width E 3983 Discharge height P 711
Body outer width F 4137 Loading height Q 3780
Min. ground clearance G 380 Body lifting height R 9556
Front track H 2900 Rear overhang S 2143
Machine I 4400 Body inner length T 6520
Frame J 1831 Body inner height U 1714
Step height K 750 Battery frame ground clearance Z 771

Note: Parameters highlighted in red correspond to the mining trucks with 41 m³ dump body.
